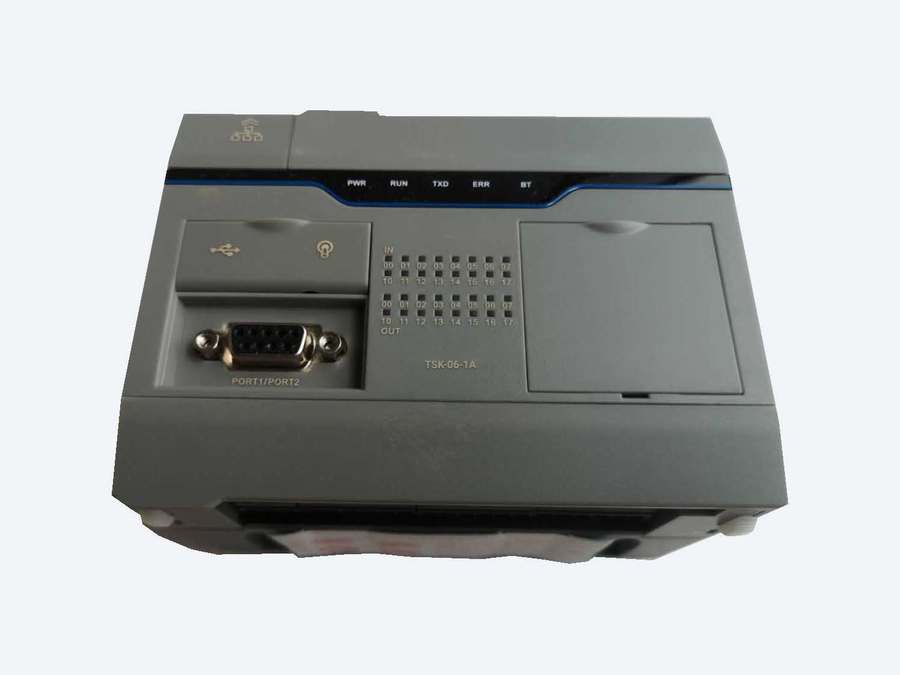

TSK-06-1A

TSK-06-1A

0.1μs basic instruction processing speed
150KB program capacity
Boolean processor
Max 8 extended module
Max 2 BD expansion board
USB download, serial port*2, Ethernet port*1
Module with Superimposed composite structure
Flexible construction

Description
Swipe the table to the right if you do not see all the columns on your device
ModelTSK-06-1ATSK-06-2TSK-06-3TSK-06-4TSK-06-5
Input Point1212162424
Output Point812161624
High Speed Input2X100 KHz
High Pulse Output (Transistor Type)2×100 KHz
Programming Running Codescan round
Programming Languageladder, standard C language, mixing using is available
Processing Speed0.1μs basic instruction/ functional instruction (ON state 5μs/ OFF state 0.5μs)
CPUARM 32 BIT Cortex0M3
Program Capacity200K Bytes (>10KStep)
Power-Off Kept Capacity2K Bytes


Communication Port		ProgrammingMicro USB port
Serial2 (RS232/RS485)
Ethernet1xModbus Tcp Slave
Power Supply100~240 VAC, 50 Hz/60 Hz±5%
Power Protectioninput power supply over-voltage protection, sensor power supply over-current protection
Allowed to Lose Electric<5 ms
CE&RoHSapplied with EN61000-6-2:2005, EN61000-6-4:2007 standard; applied RoHS lightning and surge±1KV, group pulse ±2KV; static power
contact 4KV, air discharge 8KV
Working Temp.-20~70℃; -30~80℃ storage temperature
Humidity10~90%RH (no condensation)
Cooling Modenatural air cooling
Materialengineering plastic
Dimension125x90x83172x90x83
Shipping and delivery
MAKING ORDER
  • Send your order to any of the contacts listed in the Contact Us section in the menu above. Please include documentation that may be used by us to process your request. After receiving your order, we will process your request and contact you.
  • Minimum order 100 pcs.
DELIVERY
  • Any shipping company as agreed with the customer. Delivery costs are paid by the customer.
  • Check the exterior of the goods received and if the contents of the parcel correspond to the specification.
