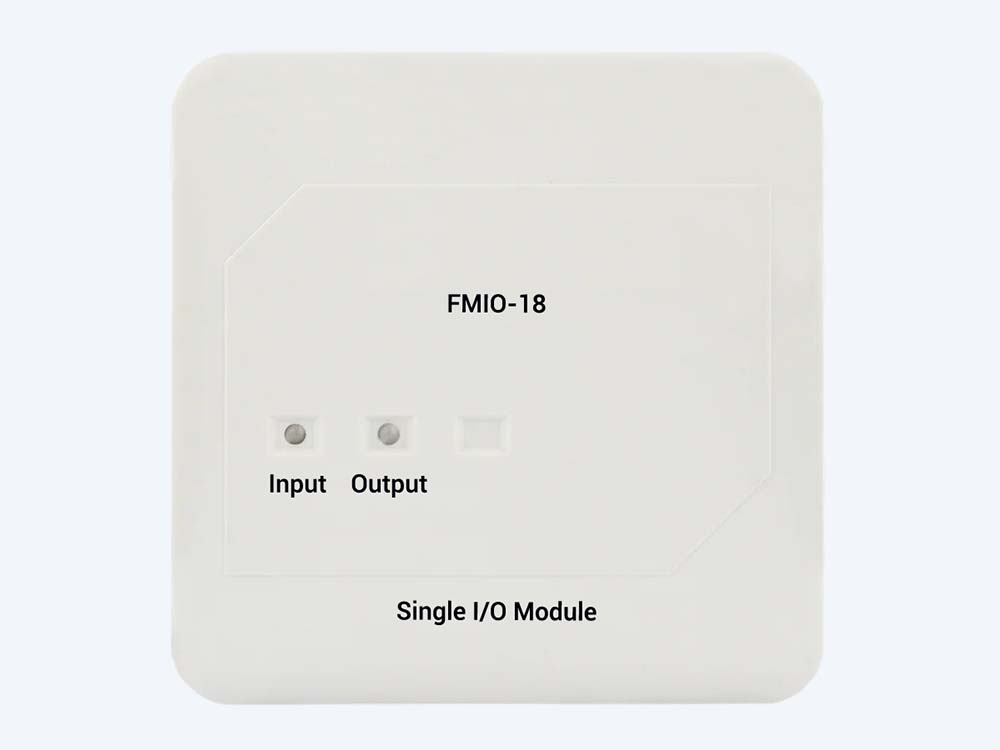

Single I/O module fire alarm

FMIO-18

Designed to connect with linkage devices of fire alarm control panel, such as exhaust valve, air valve, fire damper etc., and can receive feedback signal from device

  • Non-polarized two-wire
  • Active and passive output
  • The input terminal can be in field set to normally open detecting wire or self-feedback mode, which can be connected with passive contact
Description

Operating voltage Loop: 24V (18.5V～26V)
Power: DC24V (DC19V～DC28V)
Standby current Loop: ≤0.2mA; Power: ≤2mA
Starting current Loop: ≤2mA; Power: ≤22mA
Operating Environment Temperature: -10°C～+55°C
Relative Humidity: ≤95%, non-condensing

Output capacity
Passive: Capacity: DC30V/3A
Contact resistance in normal condition: 100kΩ
Closed when activated
Suitable for DC or AC12V～48V
Active output: DC24V/1.5A

Indicator
Red,Input indicator, Flashes when polling, Illuminates in action, Output indicator, Illuminates in action

Coding method: Electronically coding
Code range 1～255
Material and color of enclosure ABS; Porcelain white
Weight About 147 g (with base)
Mounting hole distance 60mm
Dimension (L×W×H) 86mm×38mm×86mm (with base)
