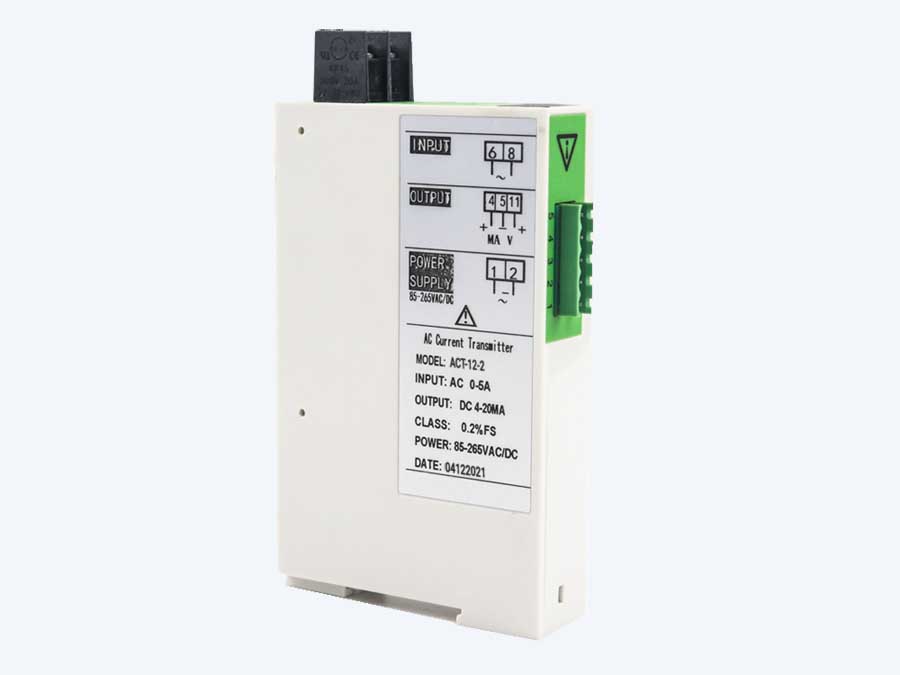

ACT-12-2

ACT-12-2

Theory: Hall Sensor
Output: Analog SENSOR
Product name: AC/DC current transmitter
Input signal: 0-1A, 0-5A, 0-10A
Output signal: 4-20mA, 1-5V, 0-10V
Power supply: AC/DC 85-265V
Installation: 35mm DIN rail
Channels: direct connection
Functional characteristics: AC and DC power supply
Precision grade: 0.2%
Response time: ≤50 ms
Working temperature: -20℃~+60℃

Description
Swipe the table to the right if you do not see all the columns on your device
Transmitting accuracy±0.1%F.S (25°C±2°C)
Rise time≤ 10 ms
Settling time≤ 100 ms
Influence of ambient temperature< 30 ppm/°C
Ripple<1 mV
Frequency range0-100 Hz
Input resistancecurrent: ≤60 0 voltage: 0~5V:≥1MOhm; 0~10V: ≥2MOhm
Output load capacity
DC current: 0~10 mA: ≤700Ohm; 4~20mA: ≤600Ohm; 0~±10mA: ≤1kOhm; 0~±20mA: ≤500Ohm DC voltage: 0 (1)~5V: ≥1MOhm; 0-10V: ≥2MOhm; 0~±5V: ≥1M0; 0~±10V: ≥2MOhm Please specify your requirements before order if greater output load capacity is needed.
Power supply voltage range:
18~32V DC (Recommended voltage:24V DC)
Power consumptionSingle outputDouble output
24V DC0.4W0.6W
Insulation resistance> 100 MOhm (Input/Output/Power)
Dielectric strength
≥ 2500 V AC (Input /Output/Power, 1mA leakage current, 1 minute test time)
Shipping and delivery
MAKING ORDER
  • Send your order to any of the contacts listed in the Contact Us section in the menu above. Please include documentation that may be used by us to process your request. After receiving your order, we will process your request and contact you.
  • Minimum order 100 pcs.
DELIVERY
  • Any shipping company as agreed with the customer. Delivery costs are paid by the customer.
  • Check the exterior of the goods received and if the contents of the parcel correspond to the specification.
